CLASSIC 2 EEC
This Mini Golf Cart Belies Its Power and Strength

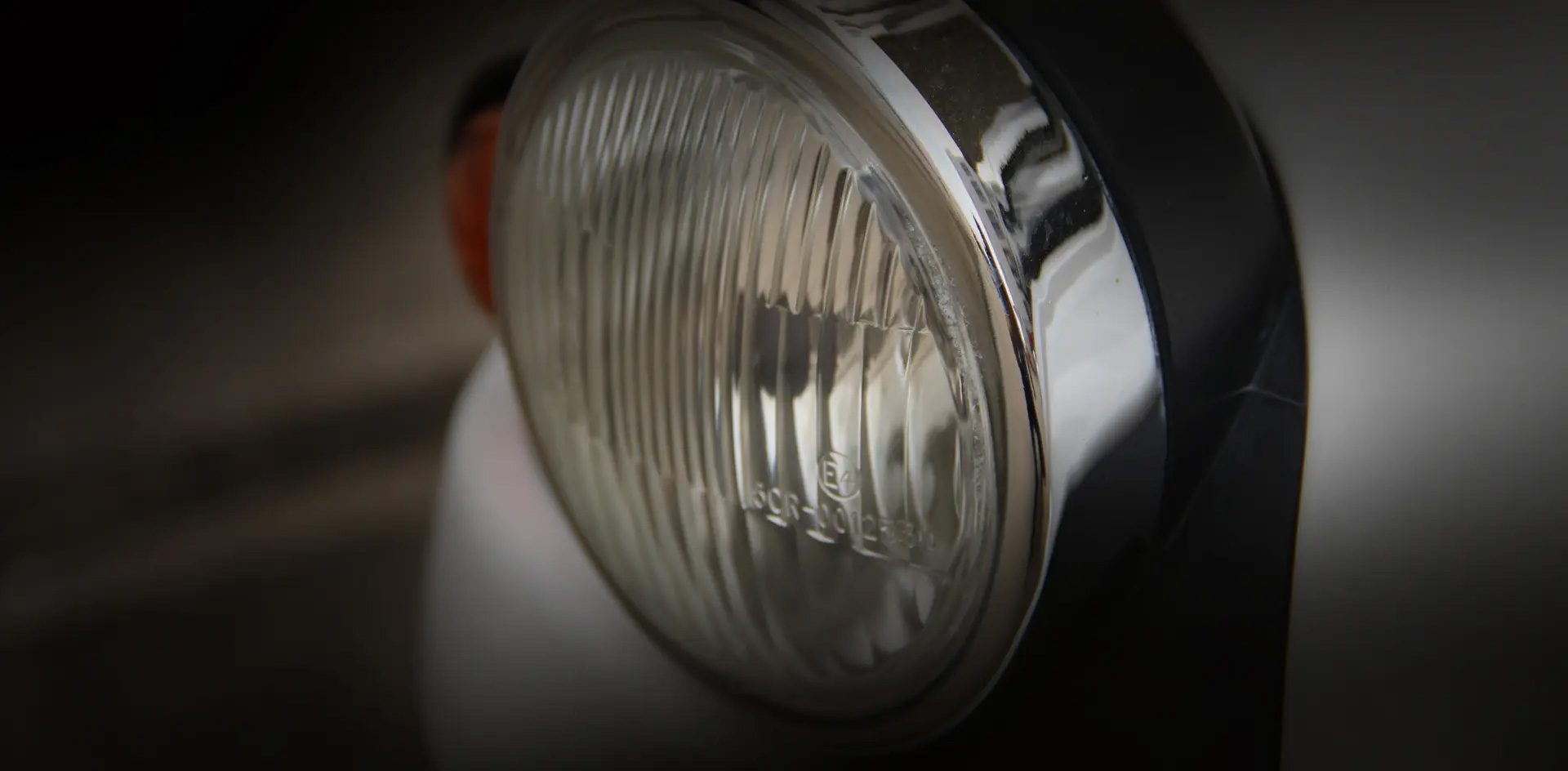

LED LIGHT
Our personal transportation vehicles come standard with LED lights. Our lights are more powerful with less drain on your batteries, and deliver a 2-3 times wider field of vision than our competitors, so you can enjoy the ride worry-free, even after the sun goes down.

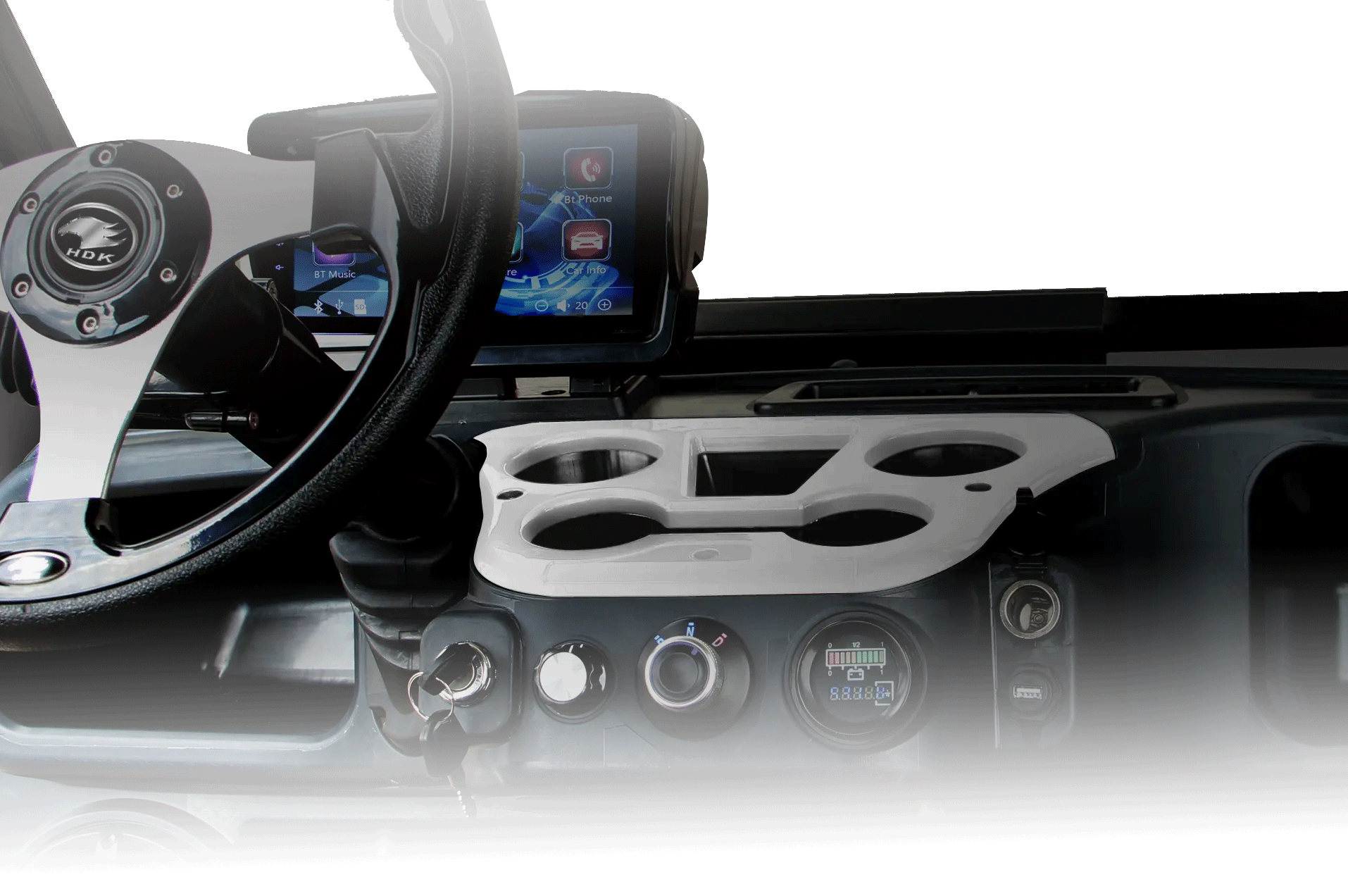

DASHBOARD
Your trusted golf cart is a reflection of who you are. Upgrades and modifications give personality and style to your vehicle. A golf cart dashboard adds beauty and functionality to your golf cart interior. The golf car accessories on dashboard are designed to improve the machine's aesthetics, comfort, and function.
CLASSIC 2 EEC
DIMENSIONS
| EXTERNAL DIMENSION | 2380×1400×1830mm |
| WHEELBASE | 1650mm |
| TRACK WIDTH (FRONT) | 880mm |
| BRAKING DISTANCE | ≤3.5m |
| MIN TURNING RADIUS | 3.1m |
| CURB WEIGHT | 360kg |
| MAX TOTAL MASS |
ENGINE/DRIVE TRAIN
| SYSTEM VOLTAGE | 48V |
| MOTOR POWER | 4kw |
| CHARGING TIME | 4-5h |
| CONTROLLER | 400A |
| MAX SPEED | 40 km/h (25 mph) |
| MAX GRADIENT (FULL LOAD) | 30% |
| BATTERY | 100Ah Lithium battery |
GENERAL
| GENERAL | 10'' Aluminum Wheel/205/50-10 Tire |
| SEATING CAPACITY | Two persons |
| AVAILABLE MODEL COLORS | |
| AVAILABLE SEAT COLORS | Black&Black, Silvery&Black, Apple Red&Black |
GENERAL
| FRAME | E-coat and powder coated chassis |
| BODY | TPO injection moulding front cowl and rear body, Automotive designed dashboard, color matched body. |
| USB | USB socket+12V powder outlet |
Description
ABOUT 25Years Of Experiences 139Professional Experts 13,569Talented People 2,563Happy Clients COMPANY OVERVIEW Growing Your Skills Providing Best Talent Solution For

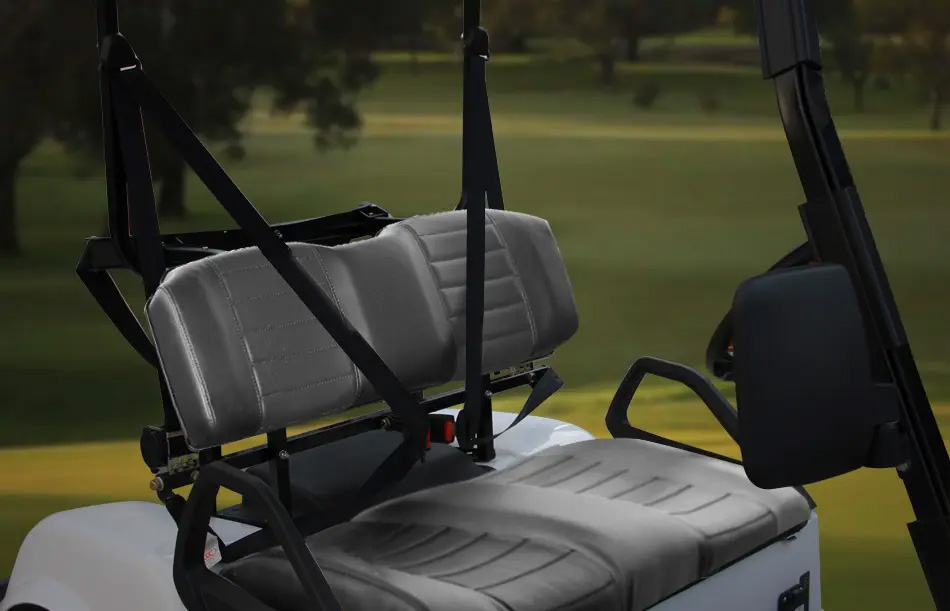

E-MARK THREE POINT SEAT BELTS
Less consumption of space with maximum strap capacity characterises our 3-point belt system. Optimised sleeves enable installation in challenging conditions. This enables you to configure your safety belt individually with existing components made from our product palette and thus ensures more safety and flexibility.

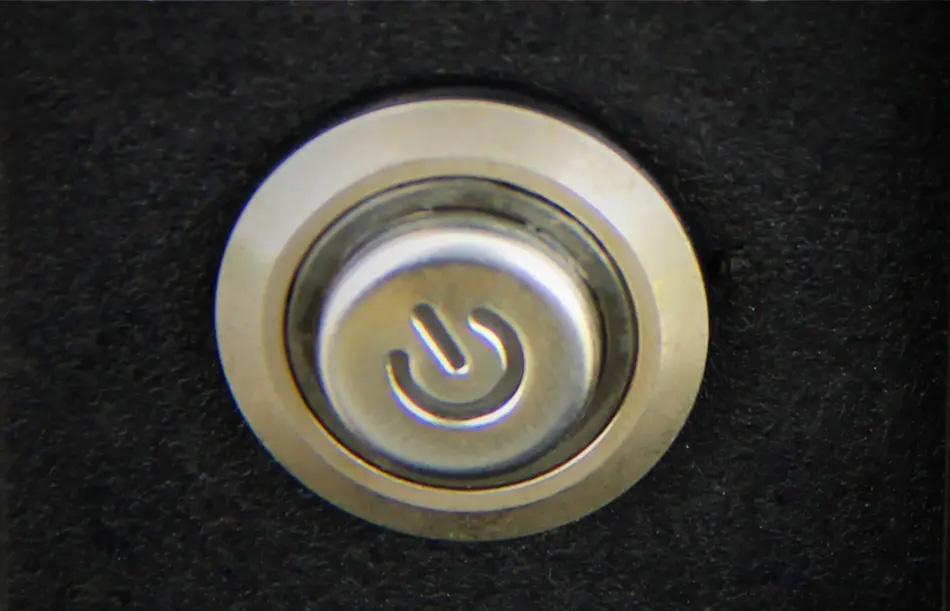

APPROVED SWITHCHES
Our approved switches provides the highest level of safety. The standard program is complemented by a variety of customised variants, ranging from single units to large batch production. Every switch which meet the minimum requirements will work.

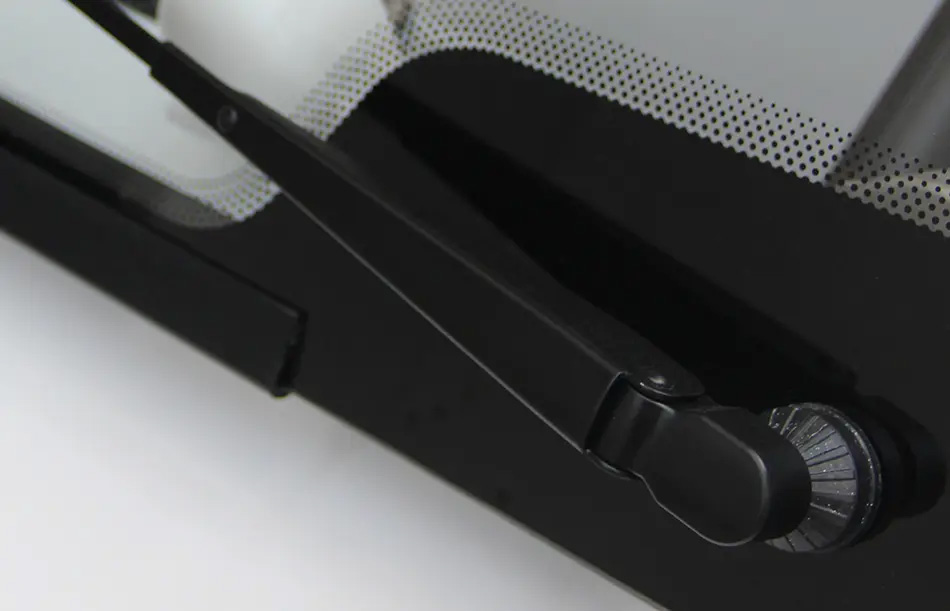

STANDARD WIPERS
HDK standard blades feature a robust and effective design for a closer wiper performance. Good mobility across the screen ensures clear visibility for the driver. High quality, durable construction for longer life.

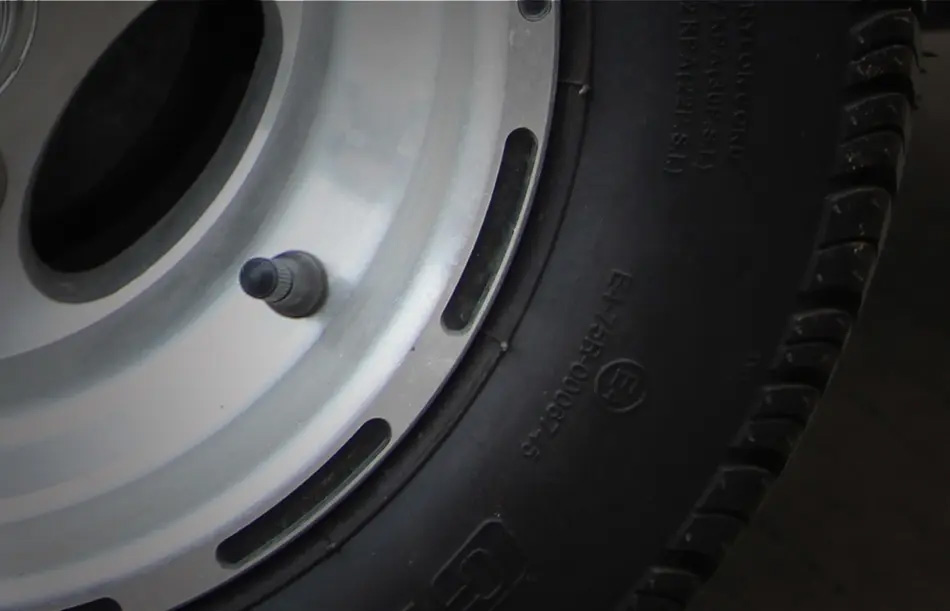

TIRE
It is pretty basic in design with a flat tread design so that they don't damage the grass on the course. Sipping in the tread allows for water dispersion and helps with traction, cornering, and breaking. This tire is typically low profile, comprised of 4 plies, lighter weight, and smaller overall compared to all terrain tires.
