D5-RANGER 2+2
Combining elegance with functionality to ensure a comfortable ride for players

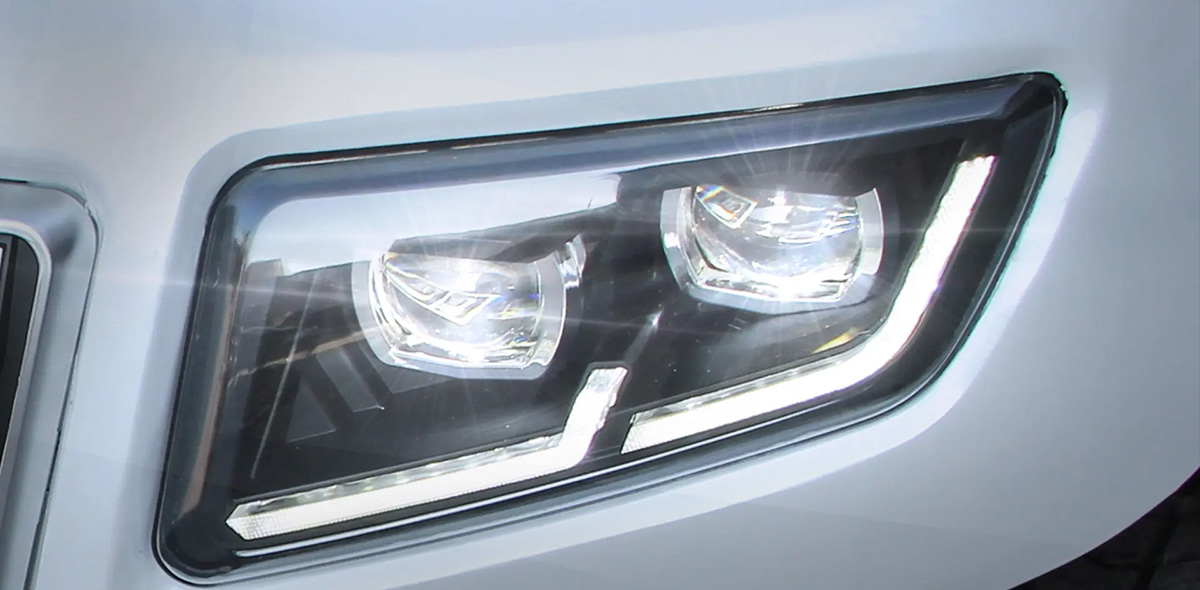

LED LIGHT
Our personal transportation vehicles come standard with LED lights. Our lights are more powerful with less drain on your batteries, and deliver a 2-3 times wider field of vision than our competitors, so you can enjoy the ride worry-free, even after the sun goes down.

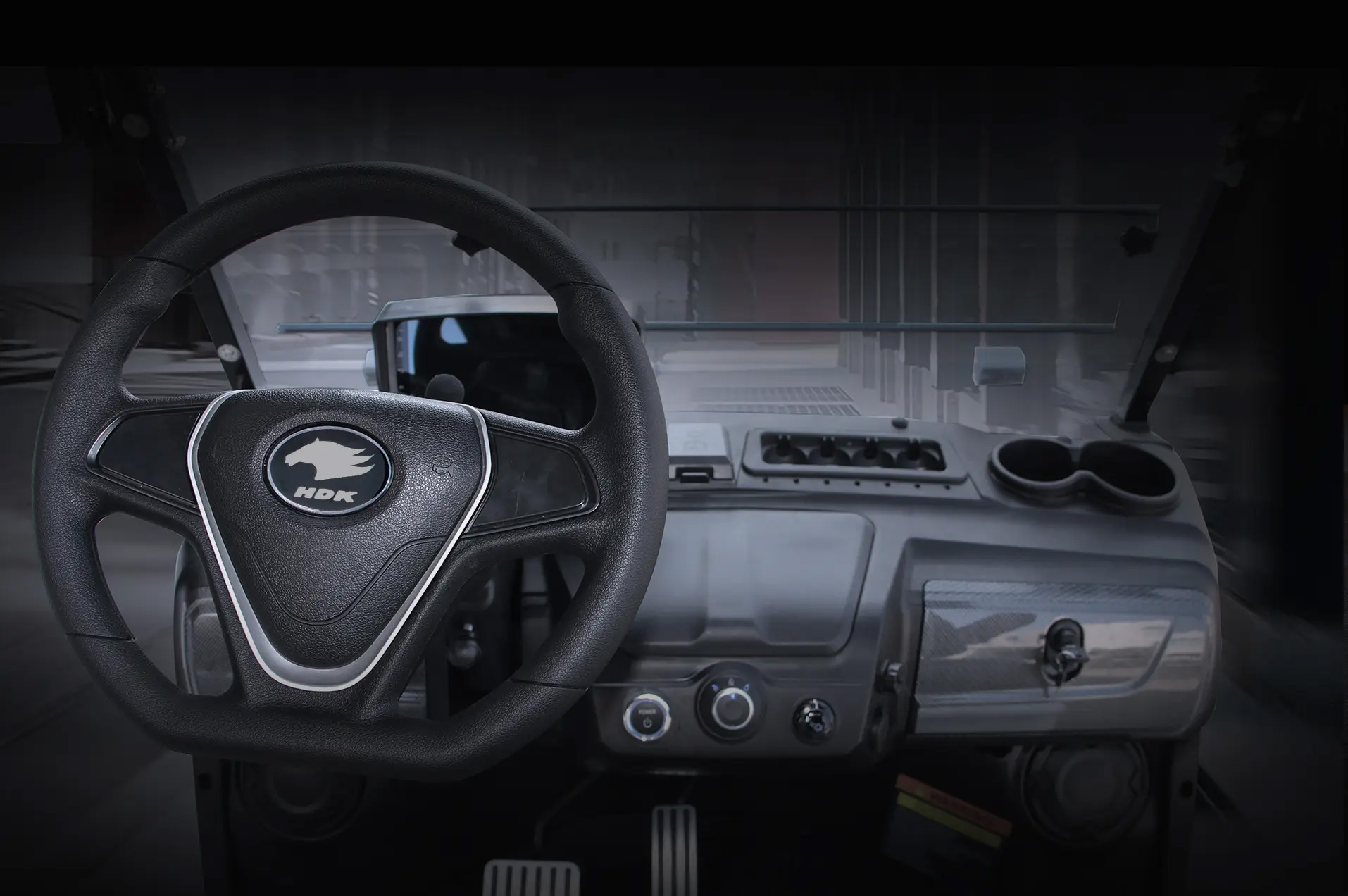

DASHBOARD
Your trusted golf cart is a reflection of who you are. Upgrades and modifications give personality and style to your vehicle. A golf cart dashboard adds beauty and functionality to your golf cart interior. The golf car accessories on dashboard are designed to improve the machine's aesthetics, comfort, and function.
D5-RANGER 2+2
DIMENSIONS
| EXTERNAL DIMENSION | 3080×1418(rearview mirror)×2045 |
| WHEELBASE | 1620.5mm |
| TRACK WIDTH (FRONT) | 925mm |
| BRAKING DISTANCE | ≤3.5m |
| MIN TURNING RADIUS | 3.3m |
| CURB WEIGHT | 460kg |
| MAX TOTAL MASS |
ENGINE/DRIVE TRAIN
| SYSTEM VOLTAGE | 48V |
| MOTOR POWER | 6.3kw with EM Brake |
| CHARGING TIME | 4-5h |
| CONTROLLER | 400A |
| MAX SPEED | 40 km/h (25 mph) |
| MAX GRADIENT (FULL LOAD) | 30% |
| BATTERY | 110AH Lithium battery |
GENERAL
| GENERAL | 225/50R14'' radial tires & 14''alloy rims |
| SEATING CAPACITY | Four persons |
| AVAILABLE MODEL COLORS | |
| AVAILABLE SEAT COLORS | Black&Black, White&Black, Apple Red&Black, Blue&Black |
GENERAL
| FRAME | |
| BODY | Front: double wishbone independent suspension Rear: leaf spring suspension |
| USB | USB socket+12V powder outlet |
Description
· 9”TOUCHSCREEN · TOP MOUNT SOUND BAR · SEAT BACK COVER ASSEMBLY· BACKUP CAMERA

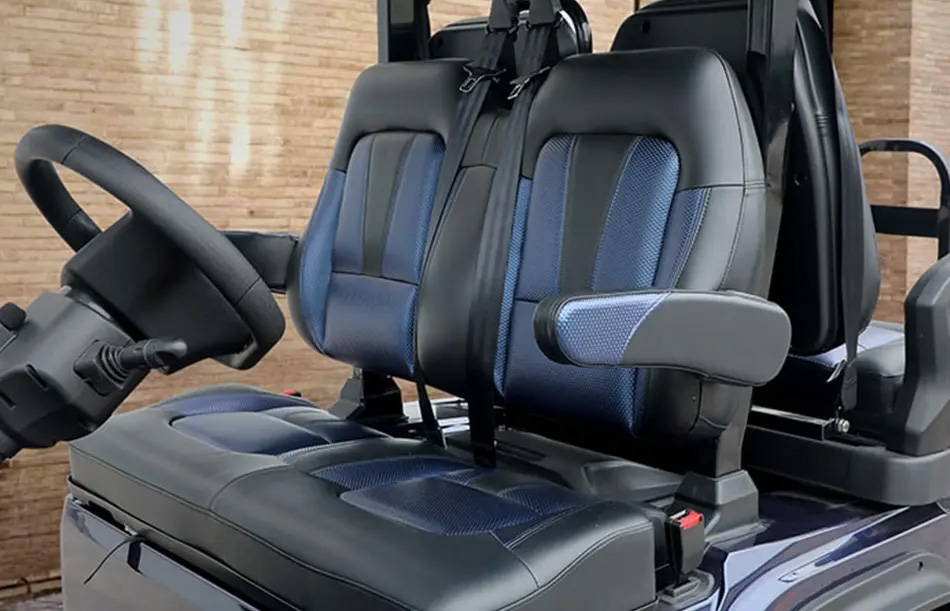

Top-notch luxury seats
Standard Safety Belts: Standard three-point safety belts for all seats, keeps you safely buckled up in driving and riding.Rotatable Armrest: It can rotate 90 degrees and provide an ergonomic support for your cantilever elbows.

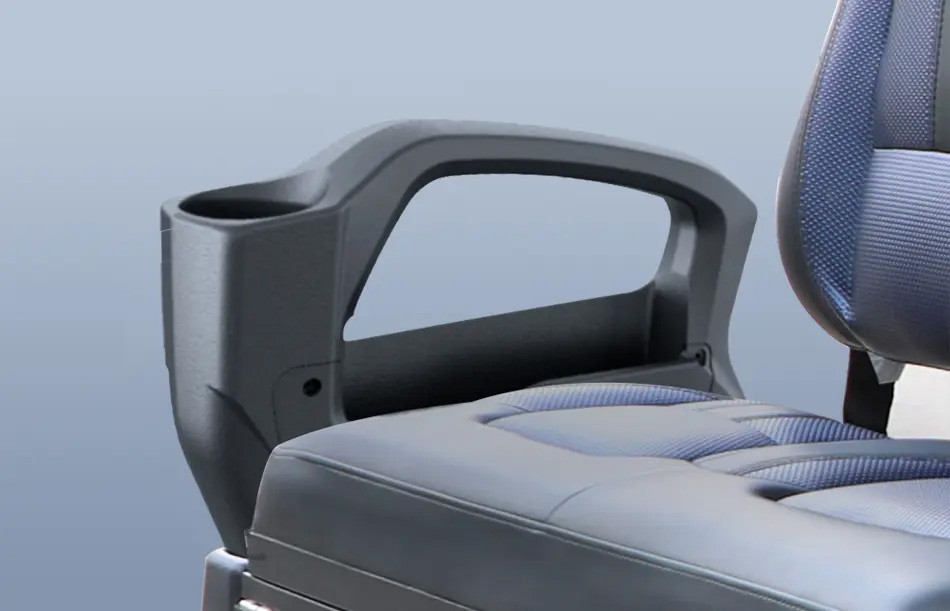

Rear Armrest with Built-in Storage
Maximize comfort and convenience with an integrated storage compartment, offering passengers enhanced comfort while providing a sleek solution for organizing personal items, ensuring an enjoyable ride.

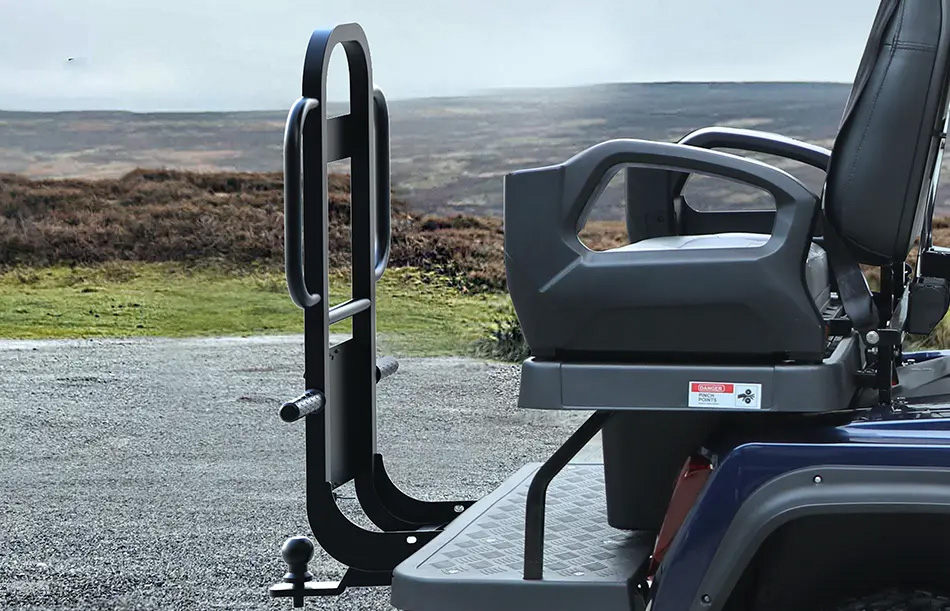

Flip Flop Rear Seat
Rear Handrail with footrest: Enhanced stability and comfort with a built-in footrest, providing extra support and relaxation. Built-in Storage Box and Door: Located underneath the rear flip-flop seat, maximizing space efficiency. Safety Belts: Standard three-point safety belts, keeping your passengers safely bulked up while riding.

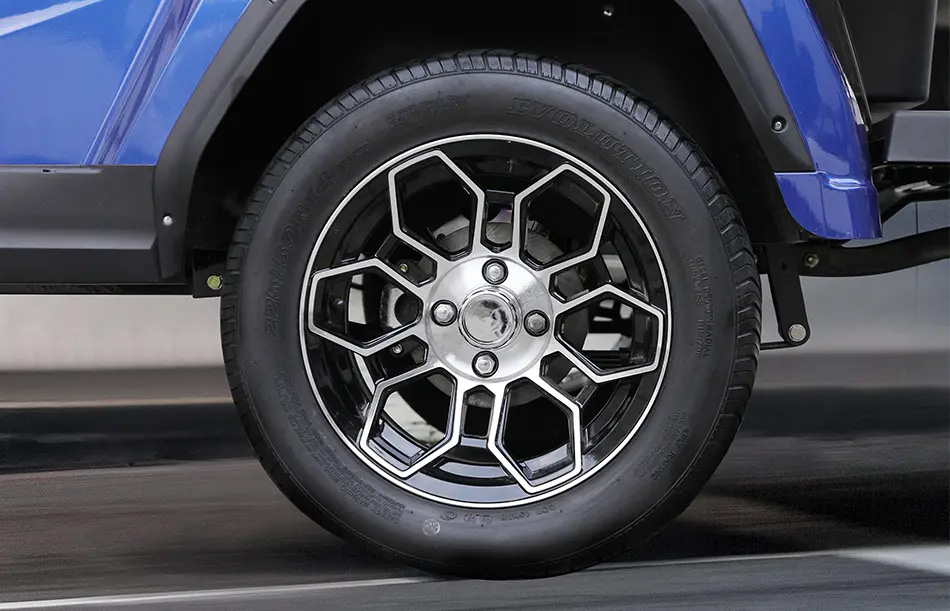

Radial tires
Experience a blend of form and function with our 14″ alloy wheel rims. Designed thoughtfully, their flat tread ensures the greens remain undamaged. The intricate sipping on the tread efficiently disperses water, aiding in impeccable traction, precise cornering, and dependable braking. These tires, with their low profile and 4-ply build, are not only lightweight but also present a more compact footprint than typical all-terrain tires.
