Drive Green
save the planet
D5-RANGER 6
Advanced electric powertrain delivers exhilarating performance.

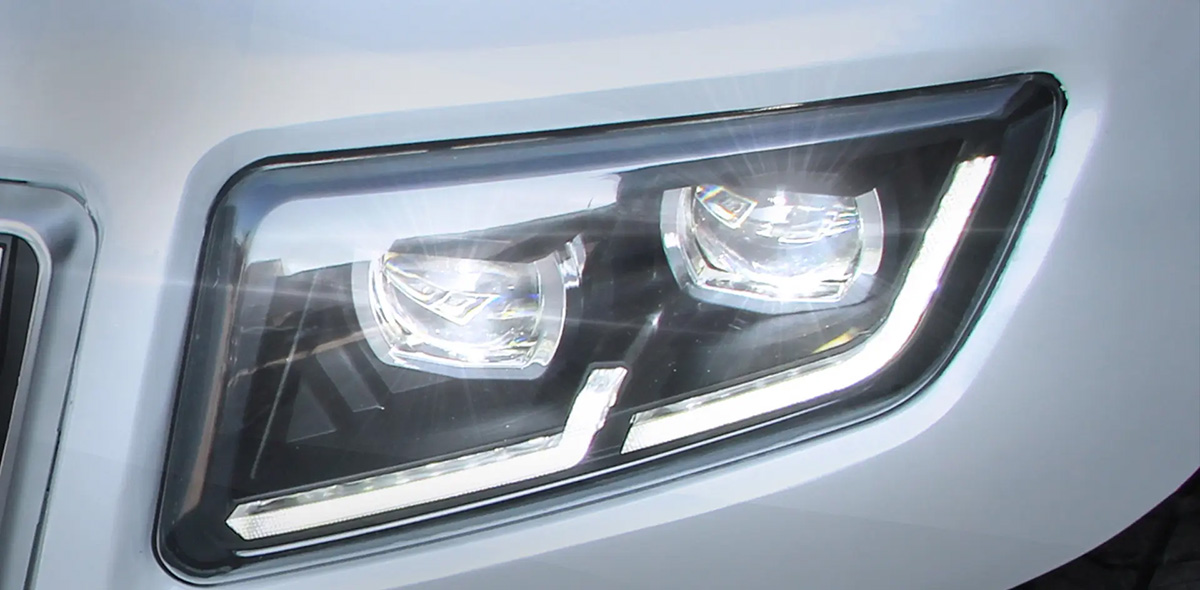

LED LIGHT
Our personal transportation vehicles come standard with LED lights. Our lights are more powerful with less drain on your batteries, and deliver a 2-3 times wider field of vision than our competitors, so you can enjoy the ride worry-free, even after the sun goes down.

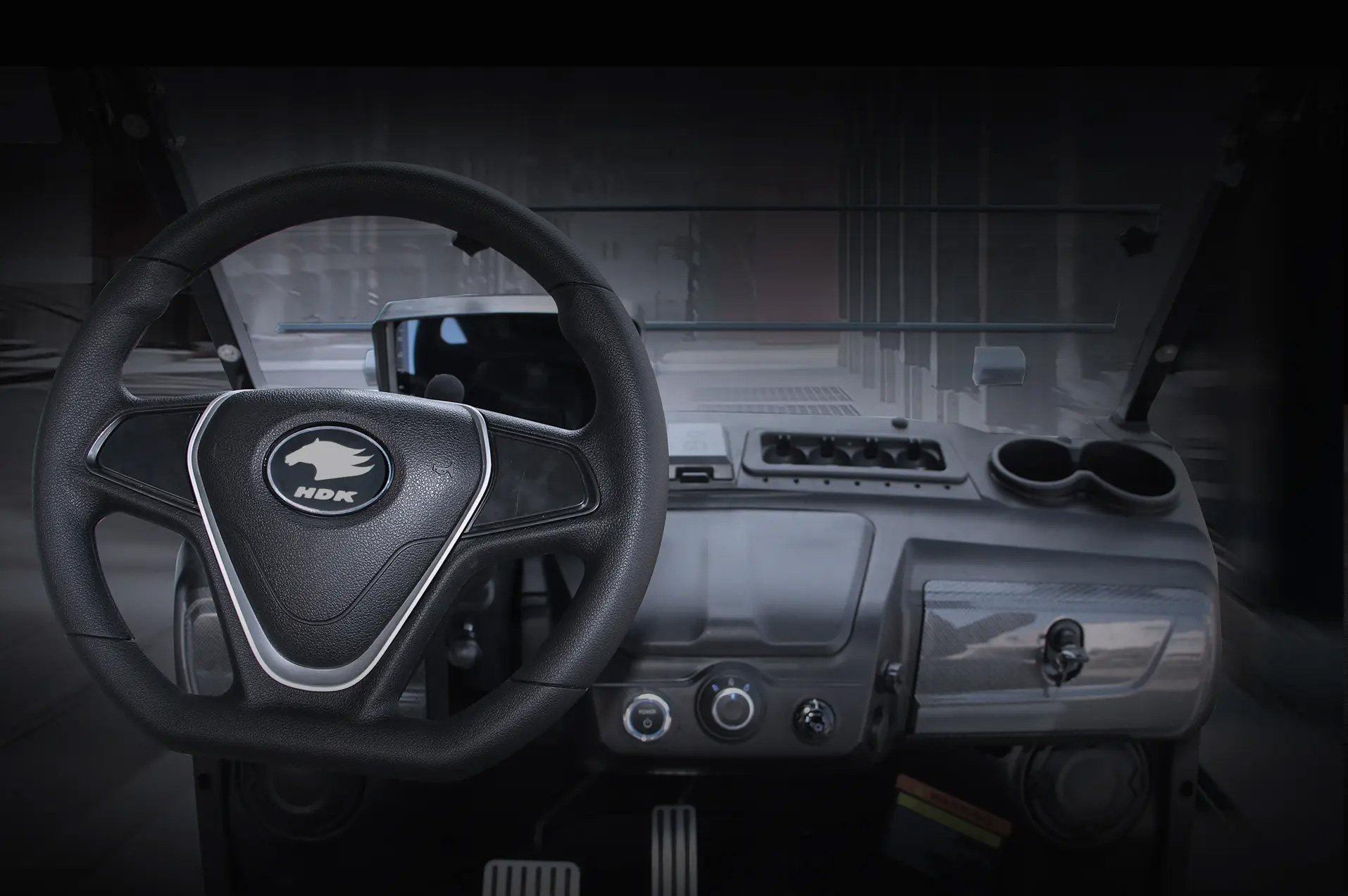

DASHBOARD
Your trusted golf cart is a reflection of who you are. Upgrades and modifications give personality and style to your vehicle. A golf cart dashboard adds beauty and functionality to your golf cart interior. The golf car accessories on dashboard are designed to improve the machine's aesthetics, comfort, and function.
D5-RANGER 6
DIMENSIONS
| EXTERNAL DIMENSION | 3760×1418(rearview mirror)×2035mm |
| WHEELBASE | 2900mm |
| TRACK WIDTH (FRONT) | 925mm |
| BRAKING DISTANCE | ≤3.5m |
| MIN TURNING RADIUS | 3.8m |
| CURB WEIGHT | 610kg |
| MAX TOTAL MASS |
ENGINE/DRIVE TRAIN
| SYSTEM VOLTAGE | 48V |
| MOTOR POWER | 6.3kw with EM Brake |
| CHARGING TIME | 4-5h |
| CONTROLLER | 400A |
| MAX SPEED | 40 km/h (25 mph) |
| MAX GRADIENT (FULL LOAD) | 30% |
| BATTERY | 110AH Lithium battery |
GENERAL
| GENERAL | 225/50R14'' radial tires & 14''alloy rims |
| SEATING CAPACITY | Six persons |
| AVAILABLE MODEL COLORS | |
| AVAILABLE SEAT COLORS | Black&Black, White&Black, Apple Red&Black, Blue&Black |
GENERAL
| FRAME | |
| BODY | Front: double wishbone independent suspension Rear: leaf spring suspension |
| USB | USB socket+12V powder outlet |
Description
· 9”TOUCHSCREEN · TOP MOUNT SOUND BAR ·REAR COMPARTMENT· ADJUSTABLE STEERING COLUMN

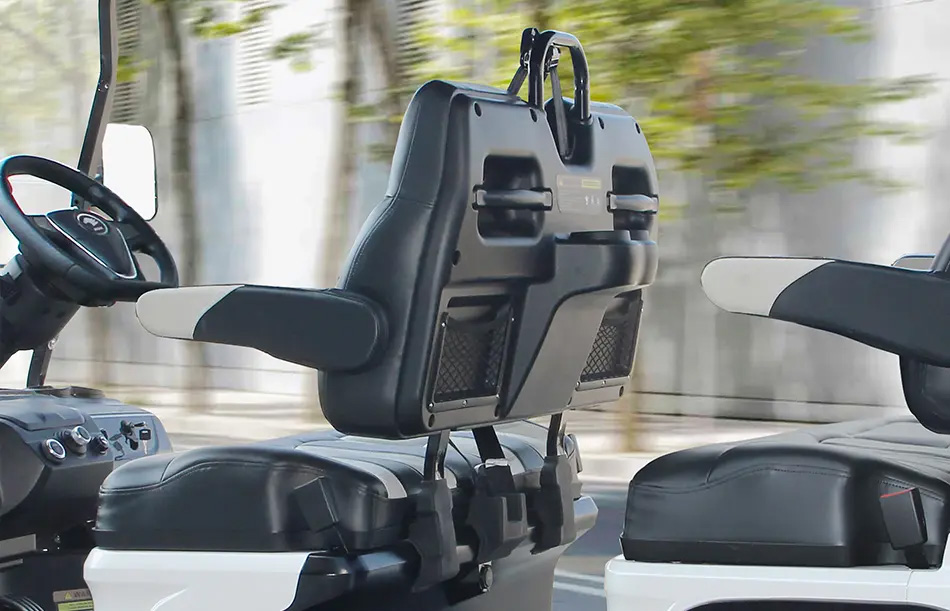

SEAT BACK COVER ASSEMBLY
Integrated with handrail ,cup holder,storage pocket ,USB charging ports etc.

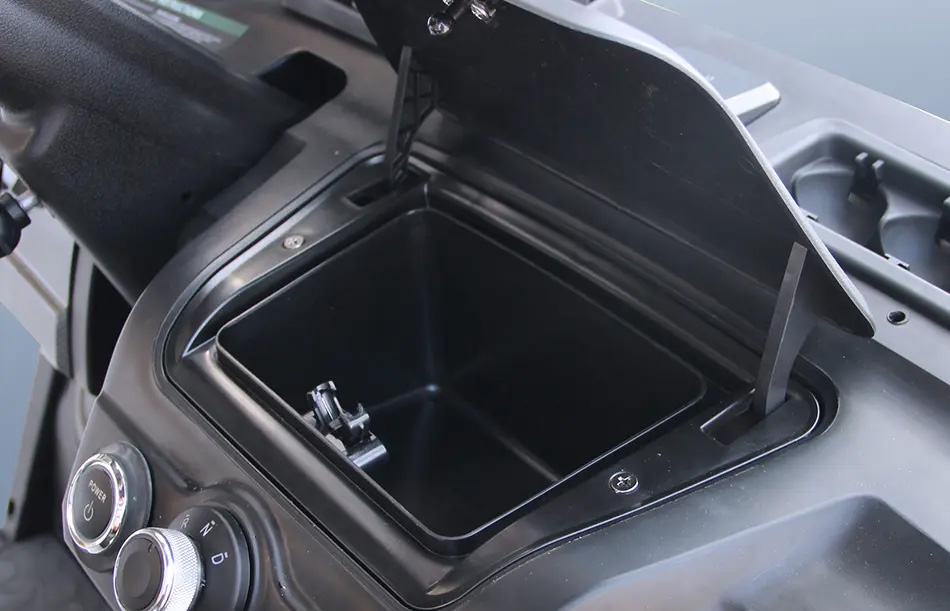

STORAGE COMPARTMENT
Extra easy-access storage compartment in the dashboard, providing a convenient and accessible storage compartment for your essential small items.

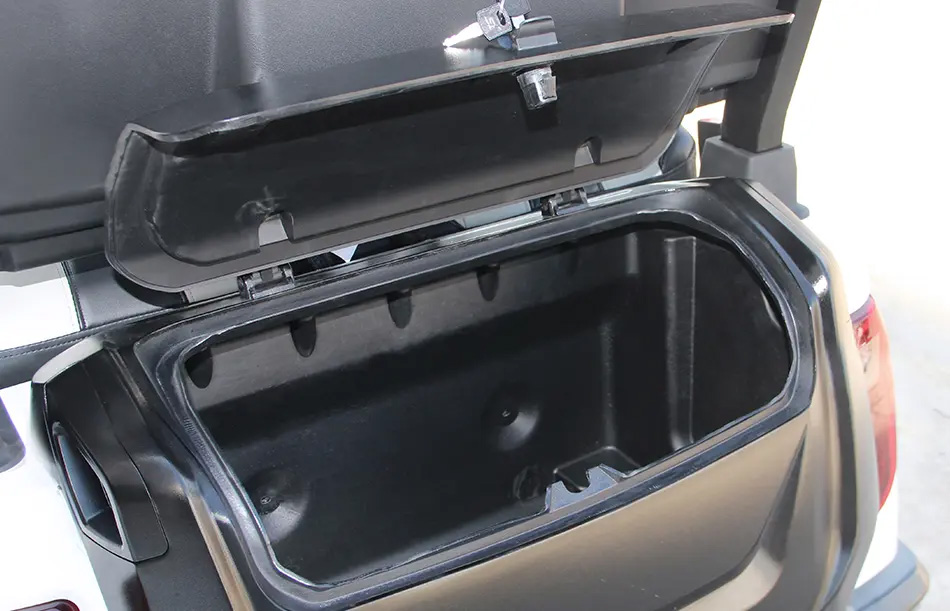

REFRIGERATED COOLER
Storage trunk is configured as standard for all D5 models , Golf bag holder as optional accessories for you to convert your D5 for different personal purposes.

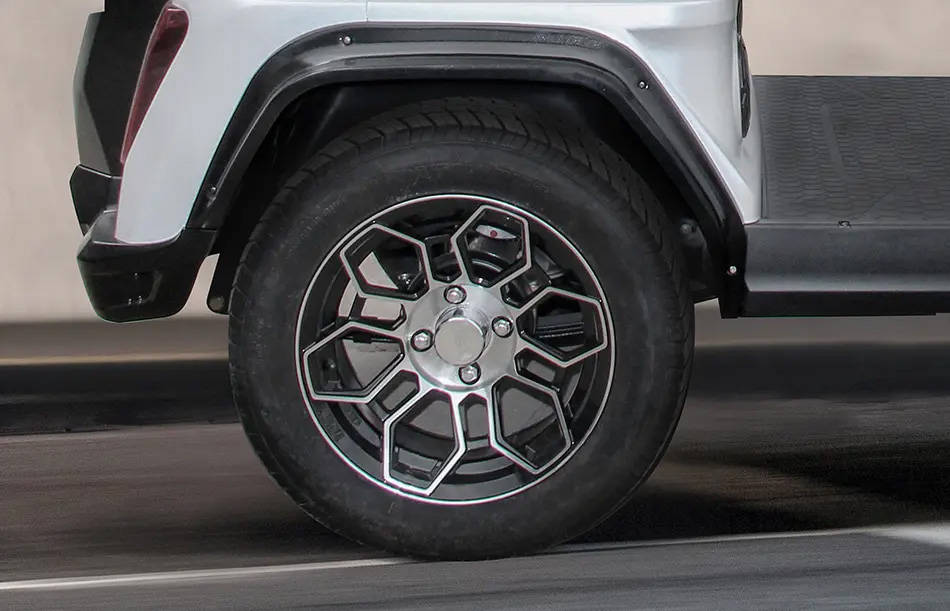

TIRES
This 14" alloy tire features an advanced flat tread design that significantly enhances performance by optimizing water dispersion. This reduces the risk of riding and improves overall driving stability, ensuring a safer and more controlled driving experience.
